Docklines

Professionally Spliced Docklines

Our docklines are professionally spliced with a soft eye and lock stitch on one end and heat seal on the other end. They are available in a variety of solid colors as well as our standard Novagold. Our dock lines are braided from the highest quality solution dyed color fast nylon yarn. In addition to our standard sizes, Novabraid docklines can be fabricated by our rigging shop with custom eye sizes, whipping, owner ID labels, large diameter rope, and long lengths for larger yachts. Each dockline can be shipped in a nylon storage bag for easy end of season wash down and storage. Available solid colors include: Navy Blue, White, Blue, Green, Red.

Neptune Nylon Double Braid

Features:

  • High Strength
  • Energy absorption
  • Rot & Mildew resistant

Suggested Uses:

  • Recreational Marine
  • Commercial Marine
  • Storm Mooring
Docklines Product Image

Download the PDF

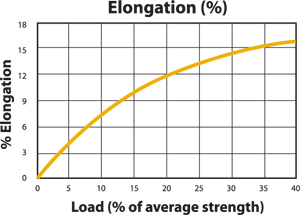

Docklines Load to Elongation Graph
Dia. (In)Dia. (MM)Circ. (In)Lbs./100 ftKg/100 MApprox. Avg Tensile
Strength Lbs.
Approx. Avg Tensile
Strength Kg
1/4"63/4"1.72.52,4001,090
5/16"81"2.63.93,4001,544
3/8"101 1/8"3.75.55,0002,270
7/16"111 1/4"5.07.46,5002,951
1/2"121 1/2"6.49.58,0003,632
9/16"141 3/4"8.412.511,8004,994
5/8"162"12.017.914,8006,719
3/4"182 1/4"16.023.819,0008,626
7/8"222 3/4"21.832.528,00012,712
1"243"26.038.733,50015,209
