Nypro

Double Braid Multifilament Rope

Nypro is a double braided rope constructed with a 100% nylon cover and a 100% multifilament polypropylene core. It is designed for marine, industrial, and electric utility use where controlled elongation, abrasion resistance, and low weight are desired. Nypro is fully spliceable and easy to handle.

Features:

  • Specific Gravity of 1.01
  • Abrasion Resistant
  • High Strength
  • Controlled Elongation
  • Easy Handling
  • Fully Spliceable

Suggested Uses:

  • Dock Lines
  • Tie Down Lines
  • Anchor Lines
Nypro Product Image

Download the PDF

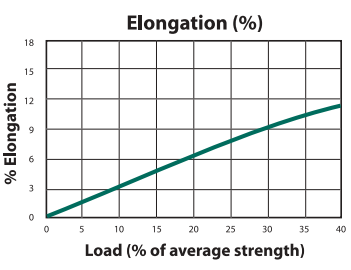

Nypro Load to Elongation Graph
Size Dia. (In)Size Dia. (MM)Size Circ. (In)Approx. Weight
(Lbs./100 ft)
Approx. Weight
(Kg/100 M)
Approx. Ave. Tensile
Strength (Lbs.)
Approx. Ave. Tensile
Strength (Kg)
1/4"63/4"1.52.32,190994
5/16"81"2.43.63,1001,407
3/8"101 1/8"3.45.14,0001,816
7/16"111 1/4"4.56.75,5002,497
1/2"121 1/2"5.98.87,2503,292
9/16"141 3/4"8.212.210,0004,540
5/8"162"10.215.212,7005,766
3/4"182 1/4"13.219.716,0007,264
7/8"222 3/4"19.729.323,80010,805
1"243"25.037.228,20012,803
1 1/8"283 1/2"33.349.638,00017,252
1 1/4"303 3/4"37.055.143,50019,749
1 5/16"324"39.058.149,25022,360
1 1/2"364 1/2"53.078.961,30027,830
1 5/8"405"63.093.874,30033,732
1 3/4"445 1/2"73.0108.792,40041,950
2"486"95.4142.1106,00048,124
