Nytec-12

High Strength 100% Nylon Fiber Rope

NYTEC-12 is a hollow braided 12-strand rope using 100% nylon yarn. It is designed with single ply construction up to 1″ nominal size and two ply in larger diameters. Available in solid white or solid black, it is fully spliceable and resistant to most chemicals.

Features:

  • Specific Gravity of 1.14
  • Non-Rotating
  • High Strength
  • Controlled Elongation
  • Easy Flaking or Coiling
  • Chemical Resistant

Suggested Uses:

  • Slings
  • Mooring Lines
  • Anchor Lines
Nytec-12 Product Image

Download the PDF

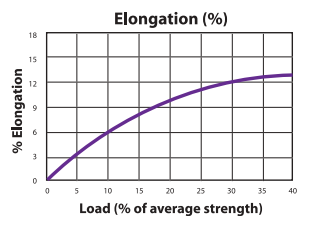

Nytec-12 Load to Elongation Graph
Size Dia. (In)Size Dia. (MM)Size Circ. (In)Approx. Weight
(Lbs./100 ft)
Approx. Weight
(Kg/100 M)
Approx. Ave. Tensile
Strength (Lbs)
Approx. Ave. Tensile
Strength (Kg)
1/4"63/4"2.03.02,3501,067
5/16"81"3.04.53,5001,589
3/8"101 1/8"3.95.85,2002,361
7/16"111 1/4"4.87.17,1003,223
1/2"121 1/2"6.710.09,2004,177
9/16"141 3/4"8.713.011,8005,357
5/8"162"11.517.114,6006,628
3/4"182 1/4"15.022.318,6008,444
7/8"222 3/4"23.034.328,00012,712
1"243"26.539.532,50014,755
1 1/8"283 1/2"34.050.641,50018,841
1 1/4"303 3/4"40.059.648,30021,928
